Inline IP68 Wall Mount Fiber Distribution Box 288 Core

Product Categories
Shenzhen Unifiber Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Inline IP68 Wall Mount Fiber Distribution Box 288 Core

Brand Name : UNIFIBER-OEM

Model Number : GPJ09-6814-C

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs/day

Delivery Time : 3~5 business days

Packaging Details : Carton box

Product : 288 core wall mounting horizontal fiber optic splice enclosure

Protection Grade : IP68

Tray Capacity : 48 (bundle); 96/192 (ribbon)

Material : Polymer Modified Plastics

Capacity : 288(bundle); 576/1152(ribbon)

Style : Inline/Horizontal

Sealing way : Mechanical Seal

Installation : Wall Mounting/Aerial/Duct Mounting/Underground

Application : FTTX

Contact Now

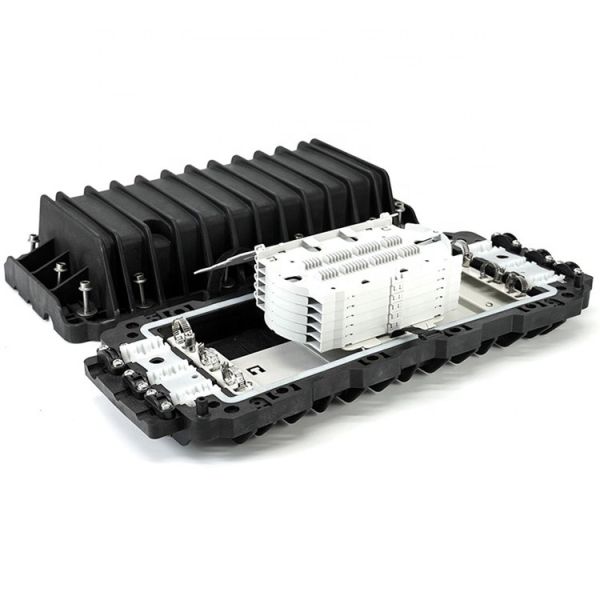

288 Core Wall Mounting Horizontal Fiber Optic Splice Enclosure 3 In 3 Out

288 core wall mounting horizontal fiber optic splice enclosure for bundle/ribbon cables

GPJ09-6814-C inline joint closure featuring functional inner structural design and an oblong shape is all-purpose connection equipment for single as well as ribbon fiber management. The screw structure of this rugged horizontal closure, together with the silica gel for squeezing seal, helps to ensure the IP68 performance. A valve is applicable to the box body (Polymer Modified Plastics) for air pressure measurement. The max capacity of this closure is 288 (single fiber) and 1152 (ribbon fiber, 6-core/ 12-core splice trays can be installed).

Features:

Capacity: 288 (bundle); 1152 (ribbon)

Ports: 3 inlets (Φ10-18 mm), 3 outlets (Φ10-18 mm)

Seal: Mechanical

Waterproof: IP68

Material: Polymer Modified Plastics

Applications: wall mounting, aerial, duct mounting, underground

Specification:

Model No.
GPJ09-6814-C
Style
Inline/Horizontal
Dimensions (L×W×H)
540×217×155 mm
Material
Polymer Modified Plastics
Sealing Type
Mechanical Seal
Protection Grade
IP68
Cable Ports
Inlet
3
Φ10 - Φ18 mm
Outlet
3
Fiber Splice Capacity
Bundle
288F
Ribbon
6-Core Tray
576F
12-Core Tray
1152F
Tray Capacity
Bundle
48F
Ribbon
6-Core Tray
96F (16 pcs ribbon fibers)
12-Core Tray
192F (16 pcs ribbon fibers)
Tray Count
6
Weight
4.0 - 4.5 kg
Application
Wall Mounting/ Aerial/ Duct Mounting/ Underground
Packing Type
Inner Carton
570×235×180 mm (1 PCS)
Outer Carton
580×460×530 mm (6 PCS)

Inline IP68 Wall Mount Fiber Distribution Box 288 CoreInline IP68 Wall Mount Fiber Distribution Box 288 Core
